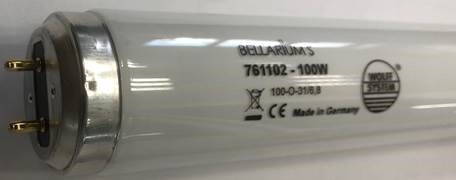

Bellarium S 100W -25stk.

Artikkelnr.: WS 761102

Prisen som er oppgitt er for en pakke med 25 rør, rørene selges ikke enkeltvis.

PrisNOK6 218,75 inkl. mva.
På lager
Ønskeliste

Produktinfo

Dimensions



Length (nom.)

1760,0 mm

Length without pins (max.)

1763,8 mm

Length base - pin (min.)

1768,5 mm

Length base - pin (max.)

1770,9 mm

Length with pins (max.)

1778,0 mm

Diameter (max.)

40,4 mm

Base

G13

Electrical Data

Supply voltage:



230 V +/-0,2%

Ballast (nominal):

100W / 230V

Lamp wattage (nominal):

92 W +/-5W

Lamp current (nominal)

920 mA

Lamp voltage (nominal)

115 V +/-10V

Physical Data

UVA Irradiance (315 - 400 nm)¹



9,5 W/m² +/-10%

UVB Irradiance (280 - 315 nm)¹

230 mW/m² +/-10%

UVB/UVA ratio

2,4%

Eer (250 - 400 nm)¹

30 mW/m² +/-15%

Recommended useful life

800 Hours



Lamp specifications:



a)       Specifiedballast:                        Cosmopower S 100W /230V

b)       Electricaldata:

-   Lamppower(typical)                                                    92W

-   Lampcurrent(typical)                                                920mA

-   Lampvoltage(typical)                                                  115V

c)       EffectiveIrradiance¹

-   UV-erythem (250 - 400nm)                                    31mW/m²

- NMSC (250 -320nm)                                            51mW/m²

- NMSC (321 -400nm)                                              8mW/m²

d)       Aquivalencycode                                               100-O-31/6,8

¹ acc. IEC measured in a distance of 25 cm to the lamp axis under stable operating conditions
