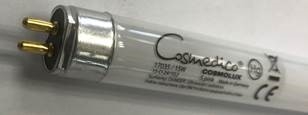

Cosmolux S pink 15W

Artikkelnr.: WS 17035

PrisNOK175,00 inkl. mva.
På lager
Ønskeliste

Produktinfo

Dimensions

Length (nom.)

288,0 mm

Length without pins (max.)

288,3 mm

Length base - pin (min.)

293,0 mm

Length base - pin (max.)

295,4 mm

Length with pins (max.)

302,5 mm

Diameter (max.)

16,0 mm

Base

G5

Electrical Data

Supply voltage:



230 V +/-0,2%

Ballast (nominal):

15W / 230V

Lamp wattage (nominal):

13 W +/-5W

Lamp current (nominal)

395 mA

Lamp voltage (nominal)

40 V +/-10V

Physical Data

UVA Irradiance (315 - 400 nm)¹



4,0 W/m² +/-10%

UVB Irradiance (280 - 315 nm)¹

130 mW/m² +/-10%

UVB/UVA ratio

3,2%

Eer (250 - 400 nm)¹

21 mW/m² +/-15%



Recommended useful life: 500 Hours

Lamp Specifications

(typical values acc. IEC / EN 61228

Specifiedballast:                          Cosmopower S 15W /230V

Electricaldata:

-   Lamppower(typical)                                                    13W

-   Lampcurrent(typical)                                                395mA

-   Lampvoltage(typical)                                                    40V

 EffectiveIrradiance¹

-   UV-erythem (250 - 400nm)                                    24mW/m²

- NMSC (250 -320nm)                                            32mW/m²

- NMSC (321 -400nm)                                              3mW/m²

f)        Aquivalencycode                                               15-O-24/10,2

¹ acc. IEC measured in a distance of 25 cm to the lamp axis under stable operating conditions
